BALINESE GAZEBO Post Measure Instructions

Screenshot (42).png

1) Make sure the tops of the post are level.

Post needs to be about 2350mm to 2450 above floor level.

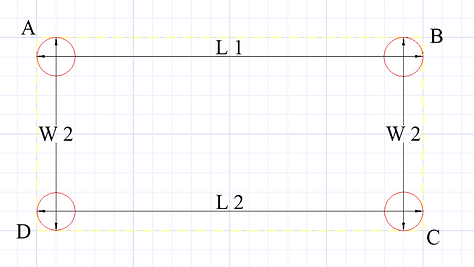

Take Measurements:

1) A to B

2) B To C

3) C to D

4) D to A

Very Important:

5) A to C

6) B to D

How To Mesure Post for Bali hut

 2) Measure length L 1 (A to B) and L 2 and

With W1 and W2 (C to D) to the millimeter.

​

Bali Hut Post Meaasure

3) Measure across the top of the frame.

(A to C and also B to D)

Measurements should be very close.



Measurements 1 to 4 must be the outside post measurements. Measurements 5 and 6 can be  inside post measurements but preferably outside post measurements.

Bali Hut Post Measure
